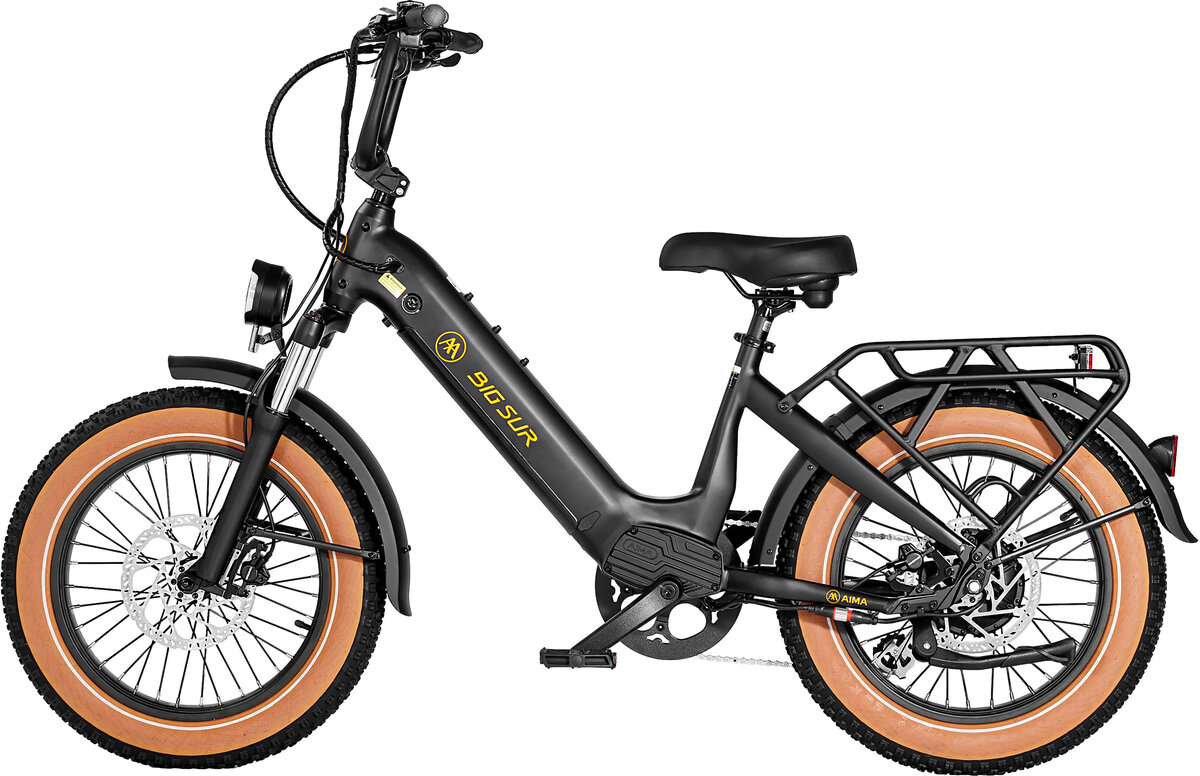

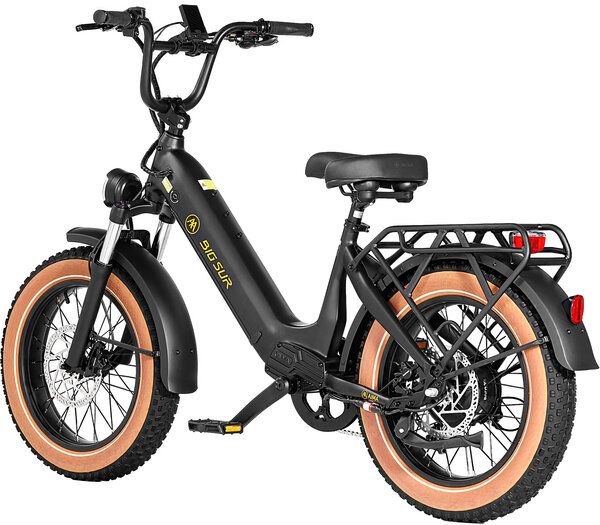

AIMA Big Sur Sport 20" Ebike

AIMA Big Sur Sport 20" Ebike
  • Color: Black
  • Color: White
  • Color: Sea Breeze Blue
$1,699.00
$1,999.00
Color:
Please select options Unavailable

Details

Everything you love about the original Big Sur is back! Now sporting 20" x 4" fat tires, Big Sur Sport is smaller and lighter, but it's just as fun and performant as Big Sur 26", if not more so! This bike retains the original's class 2/3 rating (20mph and 28mph top speed using the throttle and PAS respectively), as well as its safety features, including big 203mm brake rotors, LG 21700 battery cells, and a full UL2849 certification. Equipped standard with the AIMA Comfort XL seat and an MIK rear rack, Big Sur Sport delivers the same level of power, comfort, and smoothness of its bigger brother.


Technical Specifications

MODEL Big Sur Sport

MOTOR 750W (Rated) / 1200W (Peak), 48V Brushless Rear Hub Motor

THROTTLE Throttle on Demand

DISPLAY Color LCD, Smart Easy-to-Read Display with Backlight

SPEED Up to 28 MPH Pedal Assist, 20 MPH Throttle Only

BATTERY Removable Internal Lithium-ion 48V, 15Ah (720Wh) with LG M50LT 21700 cells

REAR RACK MIK HD

SENSORS Torque Sensor

PEDAL ASSIST 5 Levels

CHARGER 48V 3 Amp Fast Charger, about 5 Hours to a Full Charge

RANGE 30 to 60 Miles

FRAME 6061 Single-Butted Aluminum Alloy Frame with Internal Battery

WEIGHT 74 lbs. (Battery included)

PEDALS 9/16' Alloy Platform

FORK Suspension Fork with 80mm Travel, Adjustable Preload & Lockout

WEIGHT LIMIT 400 lbs.

KICKSTAND Included, Aluminum Alloy Kickstand

CRANKSET 160mm w/ 52T

SHIFT Shimano 7 Speed

GEAR RATIO RANGE 11-28T

BRAKES Tektro Hydraulic Disc Brakes

ROTOR 203 mm

CHAIN 130 Link, 8 Speed

RIM Double Wall Aluminum Alloy

SPOKES Black Stainless 12G Front / 12G Rear

TUBES Butyl Rubber

HUBS Front Aluminum Alloy Disc Hub

TIRES 20" x 4" Puncture Resistant

SADDLE AIMA Comfort, 280mm*270mm Saddle

SEATPOST Aluminum Alloy, 30.4mm 2-Bolt Clamp

STEM Threadless, 31.8mm, 7 Degree Rise, Ext 75mm

SEAT CLAMP 34.9 mm Quick Release

HANDLEBARS Aluminum Alloy Double Wall, 31.8mm, 680mm

HEADSET Sealed Bearing Headset

GRIPS Ergonomic Comfort

Videos

Big Sur Sport 20" Wheel by AIMA

Part Numbers

Option MPN Store SKU
Black AIMA-BSS-BLK 210000012040
White AIMA-BSS-WHT 210000011995
Sea Breeze Blue AIMA-BSS-BLU 210000011996
